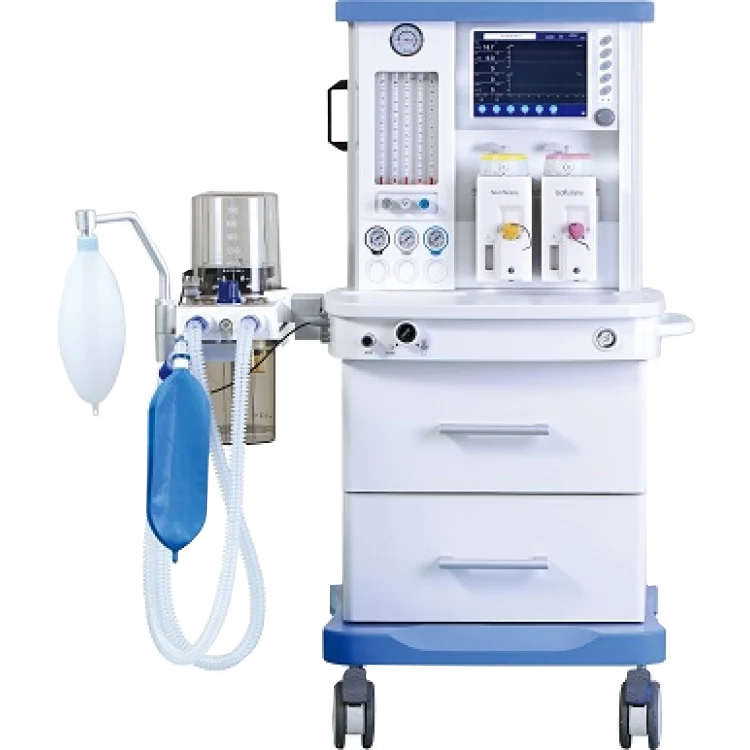

Superstar S6100

Specifications : Ventilation modes: IPPV; A/C; PCV; SIMV; SIGH; MAUN Ventilator parameter ranges Flow meter O2(0.1-10L/min) N2O(0.1-10L/min) AIR(0.1-10L/min) Rapid oxygen supply 35L/min-75L/min Tidal volume(Vt) 0,....

Specifications :

Ventilation modes:	IPPV; A/C; PCV; SIMV; SIGH; MAUN
Ventilator parameter ranges
Flow meter	O2(0.1-10L/min)
	N2O(0.1-10L/min)
	AIR(0.1-10L/min)
Rapid oxygen supply	35L/min-75L/min
Tidal volume(Vt)	0, 20 mL ～ 1500 mL
Frequence（Freq）	1bpm ～ 100 bpm
I/E	4:1～1:8
PEEP	0cmH2O ～ 30 cmH2O
Pressure triggering sensitivity（PTr）	－20 cmH2O ～ 0 cmH2O（Based on PEEP）
Flow trigger sensitivity （FTr）	0.5 L/min ～ 30 L/min
Pressure control (PC)	5 cmH2O ～ 60 cmH2O
SIGH	0(off) 1/100 ～ 5/100
Apnea Ventilation	OFF，5 s ～ 60 s
Pressure Limit	20 cmH2O ～ 100 cmH2O
Monitored Parameters
Frequence（Freq）	0 /min ～ 100 /min
Tidal volume(Vt)	0 mL ～ 2000 mL
MV	0 L/min ～ 100 L/min
Oxygen concentration	15 % ～ 100 %
Graphical display:
P-T(pressure – time)
F-T(flow – time)
P-V loop (pressure – volume loop)
Size Wooden case packing size：L 770W 890H 1535mm , GW：151KG ; NW：91.2KG Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	＜11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	＜12.5 kPa
Fan error Oxygen deficit	Show on screen Show on screen
Working conditions
Gas source	O2,N2O,AIR
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Input power	85VA
Vaporizer
